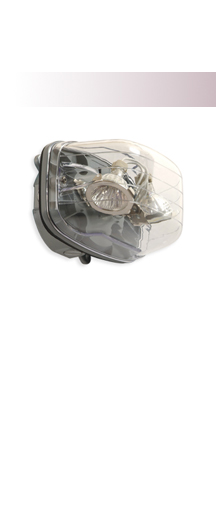

MQM*HZ Series

Hazardous Location


Features

  • Certified Class I Division2, Groups A, B, C and D as per CSA C22.2 Nº.50 and Nº.137-M1981, Class I, Zone 2, Groups IIC, IIB and IIA
  • Temperature Codes: T3B (10W and 12W MR16 lamps) and T2C (20W MR16 lamps), as per Canadian Electrical Code, Part I and CSA C22.2 Nº.137-M1981)
  • Extreme operational temperature range: -40ºC to +40ºC
  • Choice of single- or double-lamp models
  • High-efficacy 10W, 12W and 20W MR16 halogen lamps
  • Input voltage: 6V, 12V, 24V or 120V
  • Fully gasketed die-cast aluminum back-plate
  • Clear polycarbonate cover, UV- and impact-resistant
  • Easy installation on a 4-inch octagonal box (included)
  • Comes standard with tamper-proof screws and bit
