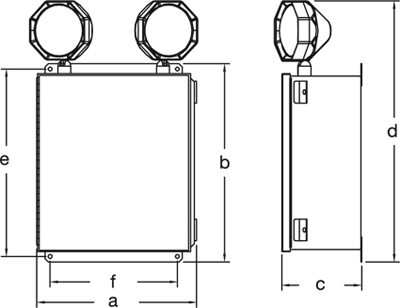

| Cabinet | Dimensions | |||||
| a | b | c | d | e | f | |
| Thermoplastic Cabinet – size 1 |
11 5/8“ (29.5 cm) |
13“ (32.9 cm) |
5“ (12.7 cm) |
18 1/4“ (46.4 cm) |
13 3/4“ (35.0 cm) |
8“ (20.3 cm) |
| Fiberglass Cabinet size 2 |
11 3/8“ (29.0 cm) |
13 1/2“ (34.4 cm) |
5 1/4“ (13.2 cm) |
18 7/8“ (47.9 cm) |
13 1/2“ (34.3 cm) |
8 1/8“ (20.5 cm) |
| Fiberglass Cabinet – size 3 |
13 1/2“ (34.3 cm) |
15 1/2“ (39.4 cm) |
6 1/4“ (15.9 cm) |
20 7/8“ (52.9 cm) |
- | - |
| Fiberglass Cabinet – size 4 |
17 5/8“ (44.7 cm) |
19 5/8“ (49.8 cm) |
8 7/8“ (22.4 cm) |
25“ (63.5 cm) |
- | - |
| Steel Cabinet – size 5 |
10 3/4“ (27.4 cm) |
13 7/16“ (34.1 cm) |
5 1/4“ (13.4 cm) |
18 1/2“ (47.1 cm) |
12 5/8“ (32.0 cm) |
9“ (22.7 cm) |
| Steel Cabinet – size 6 |
12 1/2“ (31.9 cm) |
15 5/8“ (39.6 cm) |
6 1/4“ (15.9 cm) |
20 1/2“ (52.1 cm) |
14 3/4“ (17.5 cm) |
10“ (25.4 cm) |
