Photometric Data

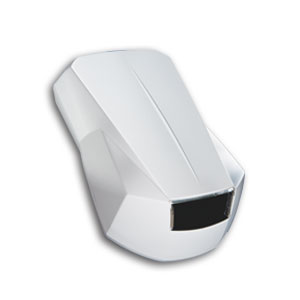

Camray LED Battery Unit
Typical spacing: two lamps centre-to-centre on a 6' wide path and 80-50-20 reflectances for: ceiling, walls and floor.
IES FILES
Lamp    Part #
BULB SPECIFICATION
Isolines PFD
Cad Feet
Cad inches
Typ. spacing Two lamps 7' mounting 6' wide
Typ. spacing Two lamps 15' mounting 6' wide
WLPK1 LED G517
039446
LED engine, wide distribution
G517 7-30.pdf
G517 isoline feet.dwg
G517 isoline inches.dwg
54'
37'
WLPK1 LED FT G566
039447
LED engine, forward throw
G566 7-30.pdf
G566 isoline feet.dwg
G566 isoline inches.dwg
30'
30'
WLPK1 LED FTH G538
039447
LED engine, forward high-output
G538 7-30.pdf
G538 isoline feet.dwg
G538 isoline inches.dwg
30'
47'
WLPK1 LED H G505
039446
LED engine, wide high-output
G505 7-30.pdf
G505 isoline feet.dwg
G505 isoline inches.dwg
48'
54'
