Photometric Data

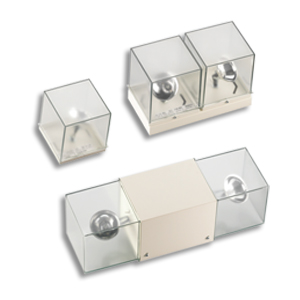

RSQB Series
Typical spacing: two lamps centre-to-centre on a 6' wide path and 80-50-20 reflectances for: ceiling, walls and floor.
IES FILES
Lamp    Part #
BULB SPECIFICATION
Isolines PFD
Cad Feet
Cad inches
Typ. spacing Two lamps 7' mounting 6' wide
Typ. spacing Two lamps 15' mounting 6' wide
CUBE 12v12w H 783 9292
580.0015
12V 12W Halogen # 783
C9292-7-30 G2.pdf
C9292 isoline feet.zip
C9292 isoline inches.zip
22'
15'
CUBE 12v18w T 921 E300
570.0029
12V 18W T5 # 921
E300 7-30.pdf
E300 isoline feet.zip
E300 isoline inches.zip
19' 0'
CUBE 12v20w H782 9293
580.0027
12V 20W Halogen # 782
C9293-7-25 G2.pdf
C9293 isoline feet.zip
C9293 isoline inches.zip
32'
22'
CUBE 12v20w MR16 9563
580.0014
12V 20W MR16 Dichroic
C9563-7-30 G2.pdf
C9563 isoline feet.zip
C9563 isoline inches.zip
29' 28'
CUBE 12v8w H774 9291
580.0014
12V 8W Halogen # 774
C9291-7-20 G2.pdf
C9291 isoline feet.zip
C9291 isoline inches.zip
21'
14'
CUBE 12v9w 915 T 9289
570.0025
12V 9W  # 915
C9289-7-20 G2.pdf
C9289 isoline feet.zip
C9289 isoline inches.zip
15'
8'
CUBE 6v12w H 786 9301
580.0011
6V 12W Halogen  # 786
C9301-7-20 G2.pdf
C9301 isoline feet.zip
C9301 isoline inches.zip
24'
17'
CUBE 6v20w H 788 9302
580.0022
6V 20W Halogen  # 788
C9302-7-20 G2.pdf
C9302 isoline feet.zip
C9302 isoline inches.zip
28'
21'
CUBE 6v8w H 785 9300
580.0013
6V 8W Halogen  # 785
C9300-7-20 G2.pdf
C9300 isoline feet.zip
C9300 isoline inches.zip
20'
13'
CUBE 6v9w T 908 9299
570.0016
6V 9W   # 908
C9299-7-20 G2.pdf
C9299 isoline feet.zip
C9299 isoline inches.zip
14'
7'
