Photometric Data

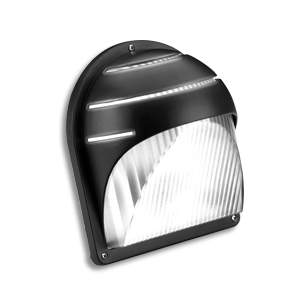

SAF-T-RAY
Typical spacing: two lamps centre-to-centre on a 6' wide path and 80-50-20 reflectances for: ceiling, walls and floor.
IES FILES
Lamp    Part #
BULB SPECIFICATION
Isolines PFD
Cad Feet
Cad inches
Typ. spacing Two lamps 7' mounting 6' wide
Typ. spacing Two lamps 15' mounting 6' wide
WLPK2 2xMR16 12v 12w fr A848
580.0080
2 x MR16 12V 12W
A848 7-30 pdf
A848 isoline feet.zip
A848 isoline inches.zip
16'
_
LPK2 2xMR16 H 12v20w E429
580.0080
2 x MR16 12V 20W H clear lens
E429 7-30 pdf
E429 isoline feet.zip
E429 isoline inches.zip
32 _
WLPK2 2xMR16 LED 12v4w E448
580.0093
2 x MR16 12V 4W LED clear lens
E448 7-30 pdf
E448 isoline feet.zip
E448 isoline inches.zip
28' -
WLPK2 2xMR1612v20w fr B210
580.0064
2 x MR16 12V 20W frosted lens
B210 7-30.pdf
B210 isoline feet.zip
B210 isoline inches.zip
38'
_
